Auto return -Adjust the lift back up micro switch

Position the frame so that you have access and also enable the adding of a bend in the micro switch lever tilt by bringing the Lift Back completely UP and Tilt the seat a little DOWN.

Unplug the table before reaching your fingers inside.

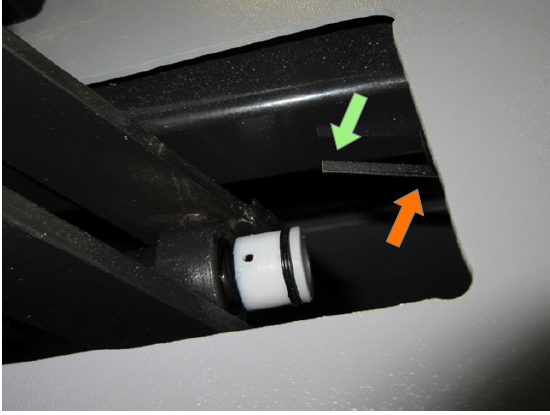

Place one finger under the middle of the metal strip at the location of the orange arrow. Push down with a finger at the end where the green arrow is to create a slight downward bend in the metal strip. This will cause the switch to turn off when the frame contacts the strip.
