Cervical traction retrofit

EVOLUTION –

Cervical Traction, Retro

TO ATTACH THE MALE SNAPS:

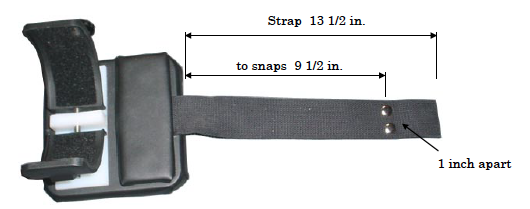

Remove the two bolts holding the cushion to the pelvic subframe. Use a phillips screwdriver to attach the two male sections of the snaps 1 inch apart and 1 inch from the edge of the cushion.

ATTACH THE CERVICAL UNIT:

Tilt the pelvic cushion to 25 degrees.

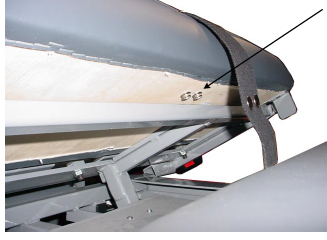

Snap the strap to the underside of the pelvic . The flex restraints should be moved toward the center as shown below.
