Reinforce the cushion insert

Reinforce the Cushion Insert:

PARTS LIST:

part #916 – 4 qty

H163 lag screw, 1/4 x 1″ long – 8 qty H3274 wood screw, #7 x 1 1/4 long – 8 qty

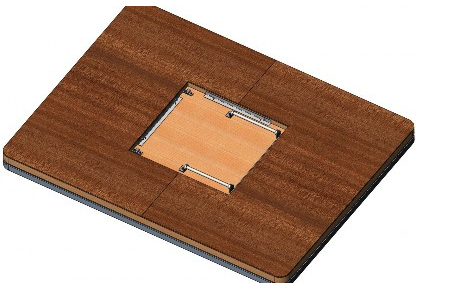

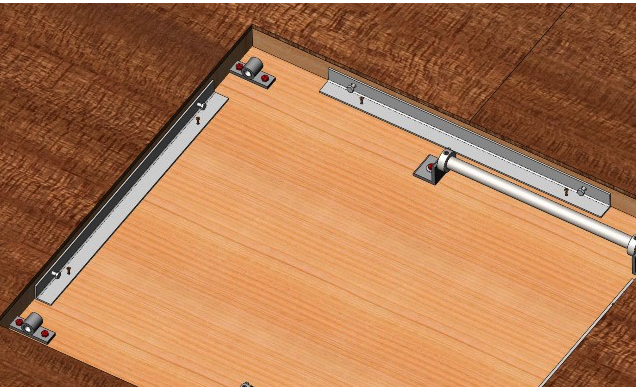

A steel angle bracket goes against each inside wall of the recessed area.

The lag screws pass through the larger holes in the steel angle brackets and into the side wall of the recess.

The wood screws pass through the angle bracket and into the bottom of the cushion.
