Cervical springs
H7541 Extension springs

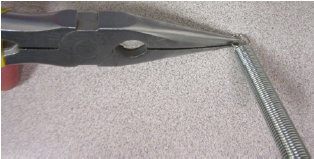

The best tool to use for connecting the extension springs between cervical frames is needle nose pliers (photo 1).

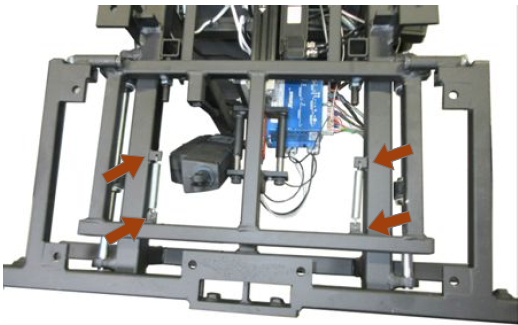

Grasp the end loop of the spring and flex it open enough to insert the end of the wire into the holes provided on the frame (photo 2).
Photo 1
Photo 2
