Detach from actuator to lumbar
- Remove the leg cushion. There is a hex head bolt near each corner on the bottom of the cushion that can removed with a 7/16″ wrench or socket.

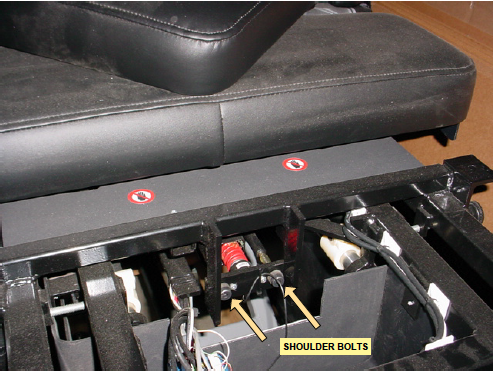

- The area you need to focus on is in the center area of the picture. There is a large red spring and a shoulder bolt on each side.
- Use a 3/16″ hex wrench in the head of each shoulder bolt to unthread and remove each.
- The lumbar frame with the leg cushion attached should be free to glide about six inches.
