Lubricate lumbar actuator rod

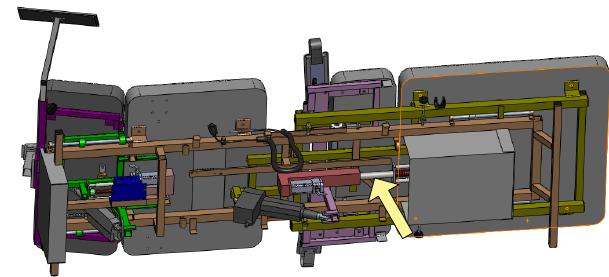

The drawing below shows the bottom of the top assembly.

1. To access this area: Elevate the table to 32 or more inches.
2. Remove the screws that secure the large plastic enclosure to the main top frame.
3. Let the upper enclosure rest on the steel base.
4. Choose any program and set it for very low poundage.

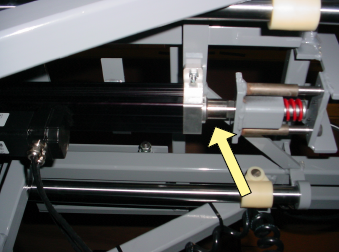

5. Press Start and let it distract to the end. This will expose about 6 inches of the actuator rod so that you can direct a brief spray of white lithium grease on the chrome rod. The arrow is pointing to the rod.
