Remove Bolts for Roller
Remove Bolts for Roller
The lumbar distraction frame needs to be removed in order to drill the hole.
- Remove the four bolts from under the leg cushion and remove it from the table.
- Remove the patient switch from the spring clamp and lay it down.
- Remove the bolt under the pelvic frame on both sides of the table. Do not remove the pelvic cushion.

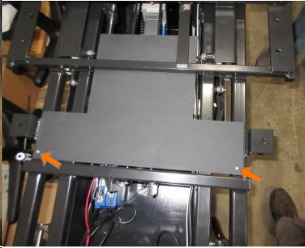

Remove the two screws that secure the plastic panel and rem ove the panel.
4. Remove the two shoulder bolts.
