Securing the receiver tube in the cervical cushion

TOOLS: 7/16 inch socket or wrench

Use the touchscreen to tilt the cervical cushion.

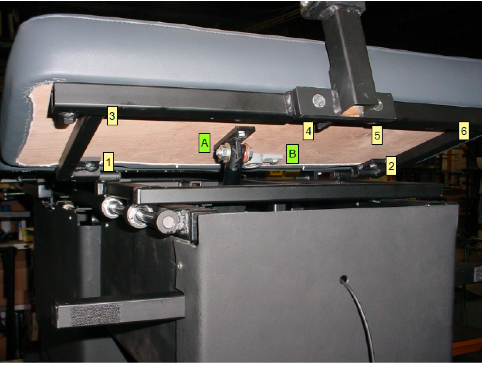

Remove only the six bolts (Locations “1-6”) securing the cushion to the frame. The actuator bracket (A) can remain attached. You will be able to tilt the cushion at location “A” and access the bracket (B) which locks the tube in place.

NOTE: Bolts “3 thru 6” are not visible in the picture

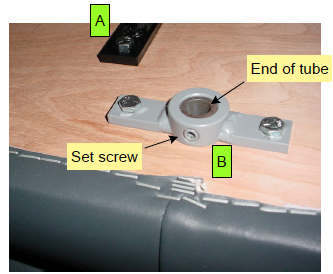

Loosen the set screw shown in the bracket below. Insert the tube until the bottom end of it is flush with the bracket, as shown. Tighten the set screw.

Secure the cushion to the frame with the six bolts.
