Add casters to 24 and 30″ heights

PARTS:

2 qty- fully assembled caster units (Base 38-3with wheels and end caps

4 qty- 5/16-18 x 1 1/4 long hex head bolts (H1156) 4 qty – 5/16-18 nuts with nylon inserts

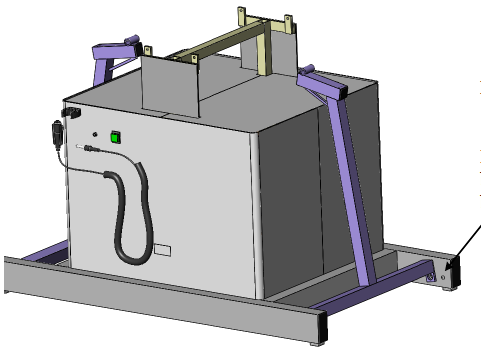

1. Remove the 1 1/2 x 3″ plastic end caps from the base.

2. Drill a 3/8″ hole on the inside of each base tube. Measure one inch from the bottom and one inch from the end.

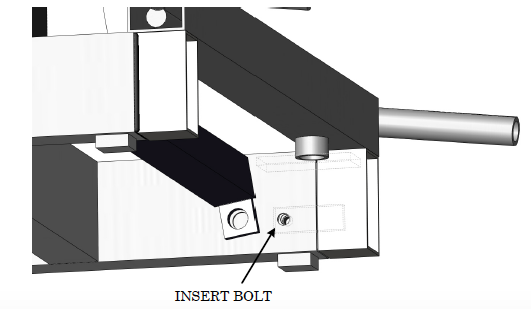

3. Insert the flat plates of the caster unit into the ends of the base tubes and secure the units with a 5/16-18 bolt into each side.
