Lubricating the pivot bolt

Be prepared to support this end of the cushion assembly.

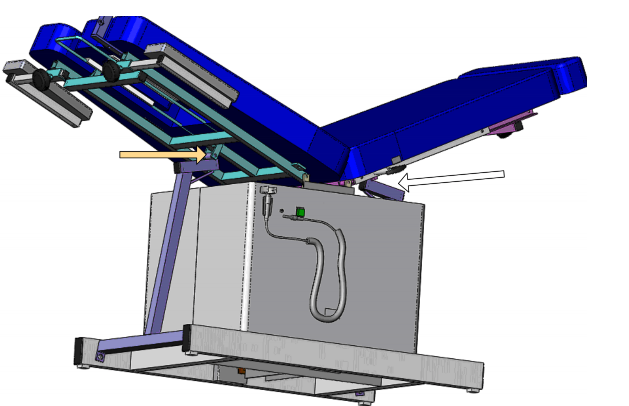

Remove the shoulder bolt at this location and ream the hole in the two tabs slightly larger.

Apply some grease to the smooth shoulder of the bolt before inserting it back through the holes.

(Same location on this side)
