How to change the compressor plugs & elbow

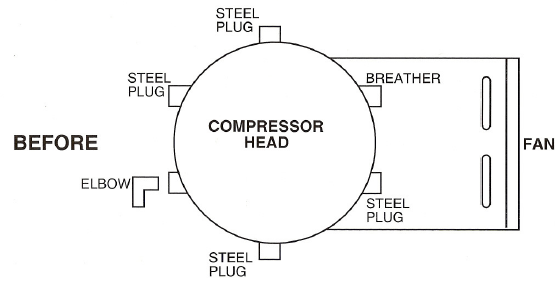

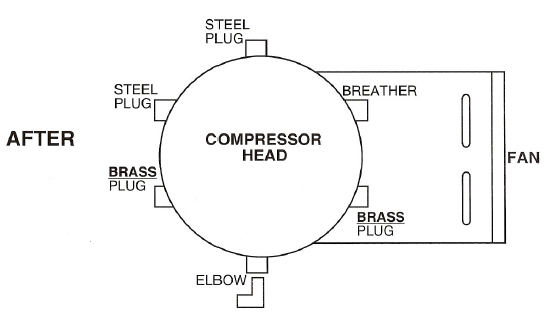

AIR COMPRESSOR FITTINGS – TOP VIEW
To better prevent the steel plugs from rusting it is best to replace two of the plugs with brass and move the elbow at the same time. Compare the “Before” and “After” views.
