Relocating the compressors unloader valve

PARTS LIST:

custom mount plate (2 qty #1 077 welded together)

9″ black & white wires (one male & female on each) – plugged onto coil

12″ of 5/32 airhose – plugged into 5/32 elbow & 5/32 male which is screwed into the coil brass hex plug screwed into coil

3 qty – wire ties

2 qty – #6 x 7/16 self-tap screws

1. Elevate the table.
2. Unplug power to table.
3. Remove screws holding inner plastic skirt to the base and hold up the skirt with masking tape.
4. Unplug two wires and air hose from the coil located on the air compressor. (Press the ring on the fit ting away from hose to release the hose.)
5. The coil is attached to the compressor with a brass elbow. Swing the elbow up so that the coil clears the top of the compressor. Unscrew t he coil from the elbow.
6. Unscrew the brass elbow from the compressor and replace it with the elbow fitting attached to the hose of the new coil.

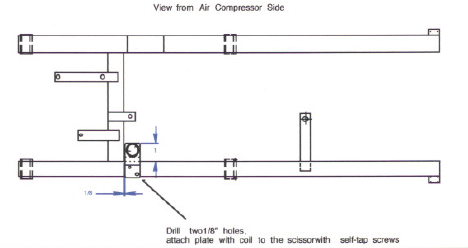

7. Attach the plate for the new coil to t he scissor referring to the drawing “SCIS 3D”, below.
8. Plug the two new wires into the two wires you unplugged from the original coil in step 4.
9. Plug original air hose into new section of hose on new coil.
10. Use the enclosed wire ties to secure any dangling wires.
