Replacing the unloader coil (1995-2011)

1. Use the foot pedal to elevate the table.

2. Unplug the table.

3. Remove the screws holding the lower section of the skirting to the base.

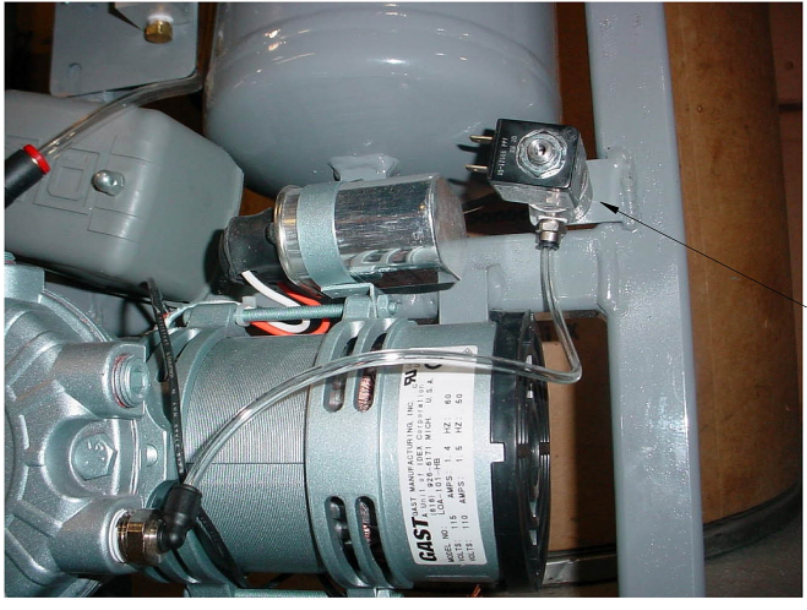

4. Lift the skirt to allow access to the air compressor area shown in photo above.

* The skirt many be propped up or secured up with tape.

5. Use a 9/16 wrench to remove the nut on top of the coil and remove coil.

6. Switch wires to the new coil.

7. Locate the new coil over the stem and replace nut.

8. Reattach the skirt.
