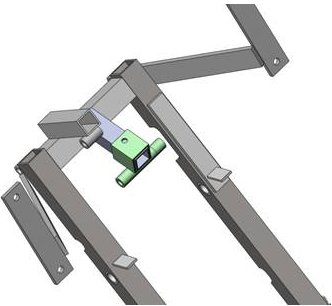

Thoracic mechlok mount repair on main frame

PARTS LIST:

FR 17-15 weldment (“A” version for regular hgt, “B” for low hgt) – 1 qty 1/4-20 x 2″ long round head (from Anatomotor) – 1qty

1/4″ washer – 1 qty

1/4-20 steel nut (w/nylon) – 1 qty

INSTRUCTIONS:

1. Grind or file enough residual weld off the vertical tube to enable the new bracket to slide onto the end of the square tube.
2. Mark and drill a 1/4″ hole through the vertical square tube.
3. Use the enclosed bolt to secure the new bracket.
