HA90C – Converting Slide-out Ankle to Drop Foot

KIT2-013

PARTS:

U 2-7-4-Drop Foot Cushion

Drop foot hinges (FR 2-4A ) – 4 qty

Drop Foot Tee (FR 2-13A ) – 1 qty

Shoulder bolt – 3/8 x 2 1/4 long (H 894) – 2 qty

Hex head screw s (H 480) – 1/4-20 x 1 long – 4 qty

1 qty – #6 x 7/16 self-tap screw (H 482)

4 qty – 1/4 x 1″ lag screw s (H 163)

The receiver tube with the knob, located on the main frame, should be cut short enough to allow the support tee to retract fully under the stationary cushion. If you choose not to cut it, the new cushion will need to be moved far enough from the stationary cushion so that the drop foot can hinge down without interference.

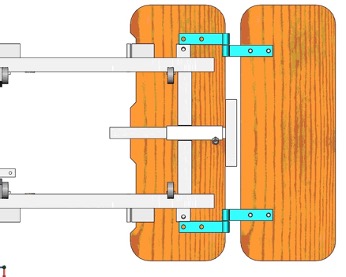

Secure the hinge to the underside of the stationary cushion with the lag screws.

Once the support tee is inserted in the receiver, add the strap screw to the tee so that it doesn’t pull out.
