Replacing a Broken Hinge Pin

E or MD with No Tray – Replacing a Broken Hinge Pin

Parts:

Welded Bracket

Drill Template

1/4-20 x 3′ round head bolts – 2 qty

nuts w/ nylon – 2 qty

Washers – 2 qty

1. Use the enclosed template to mark location for two holes on the outside surface of the top frame.

2. Drill the two holes to 5/16′ holes.

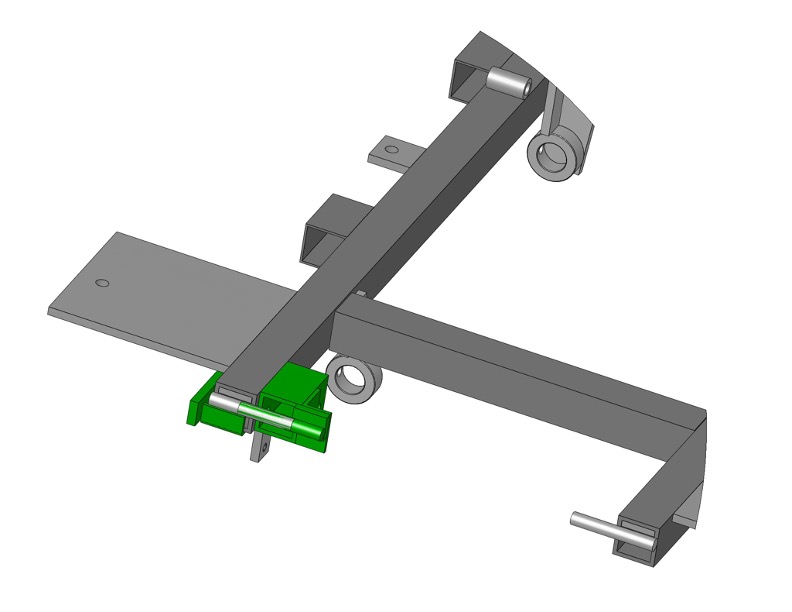

3. Use the enclosed bolts to secure tohe repair bracket (green) to the inside of the frame tube.
