Remove foot cushion (pre 12/2007)

(Tables before Dec 2007)

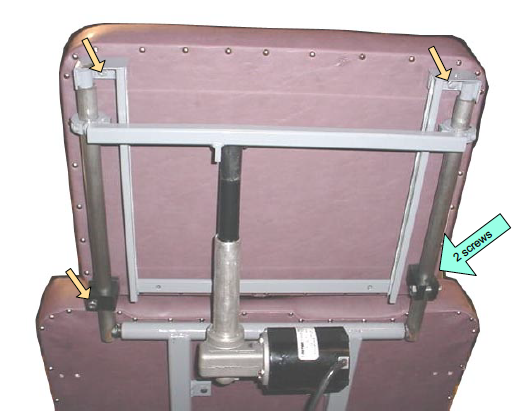

Remove the three hex head bolts at the three positions indicated by the lighter colored arrows.

The black plastic glide that has the lock knob on it is secured to the cushion with two screws. Remove them. The cushion can be removed.
