Replace Foot Frame with Separate Rods

1. Unbolt actuator.

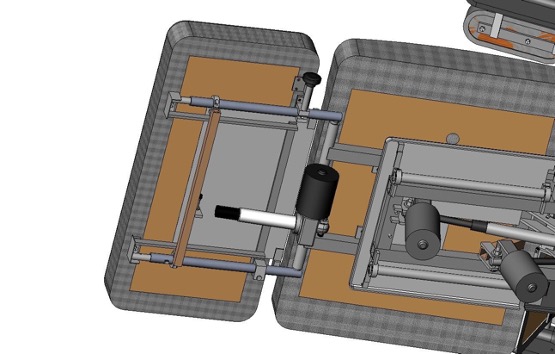

2. Use a hex wrench to loosen the split lock collars at each end of the actuator mount bracket. Remove the bracket from the two tubes.

3. Slide the frame that the cushion is bolted to out of the two tubes.

4. Remove the foot cushion from the slide frame.

Install the new rods by reversing the steps. Use the included sheet to add longer metal plates (H1411) to the top of the black guide block.

5. The actuator mount bracket should be 1 3/4″ from the end of the tube on each side. There is a stop welded to the tube on the one side to rest the bracket against.
