Add Gas Shock to Raised with Dual Drop

Add Gas Shock to Raised with Dual Drop

Parts

FR2-59 -1 qty
FR2-60 – 1 qty
H816 – 2 qty
H3663 – 2 qty
H413 – 1 qty
H480 – 1 qty
H509 – 4 qty

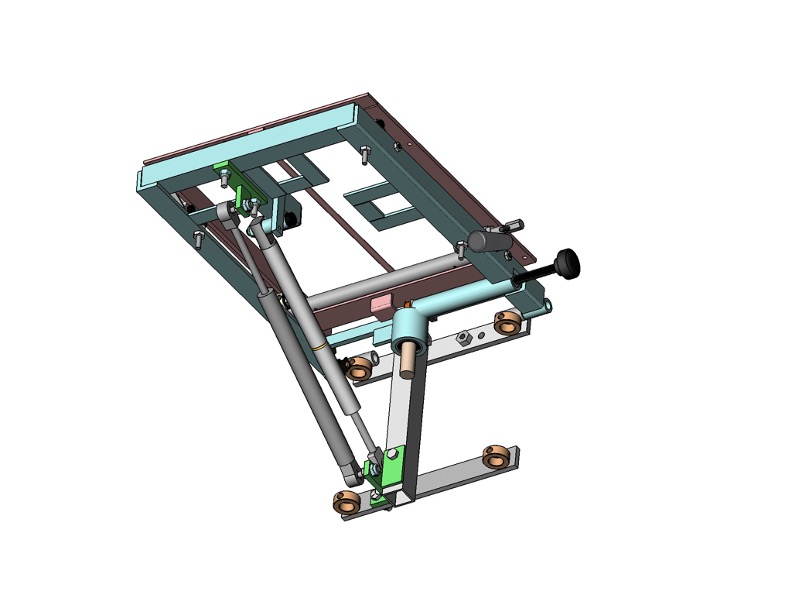

Locate the bracket to the end of the tube. Mark and then drill two 5/16″ holes. The tab is off-centered toward the table.

Locate the bracket to the bottom of cross bar. Mark and then drill two 5/16″ holes.
