Headpiece drop pin

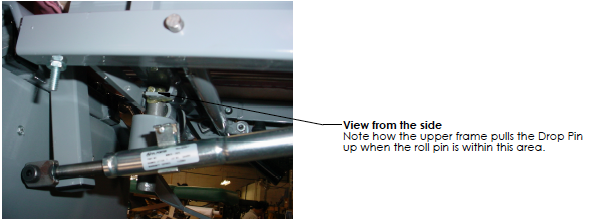

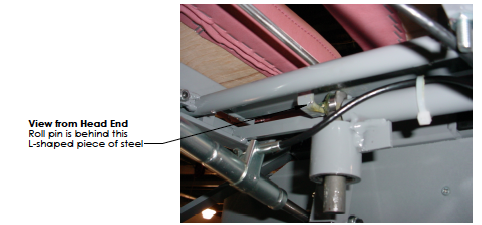

There is a spring pin (“roll pin”) that is pressed into a hole at the top of the Drop Pin. The spring pin should be within the area under the upper frame that is created by the L-shaped piece of steel welded to the underside. 2 views of the correct relationship are shown. Reduce the drop tension which will allow you to rotate the Drop Pin into position.
