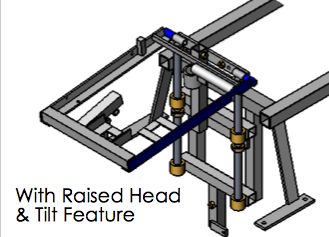

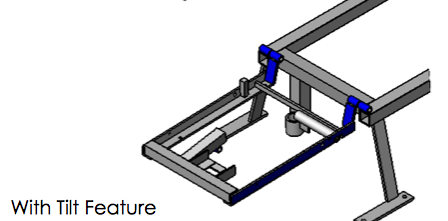

Dual Drop Head Assemblies – The difference between Raised Head and Tilt Head

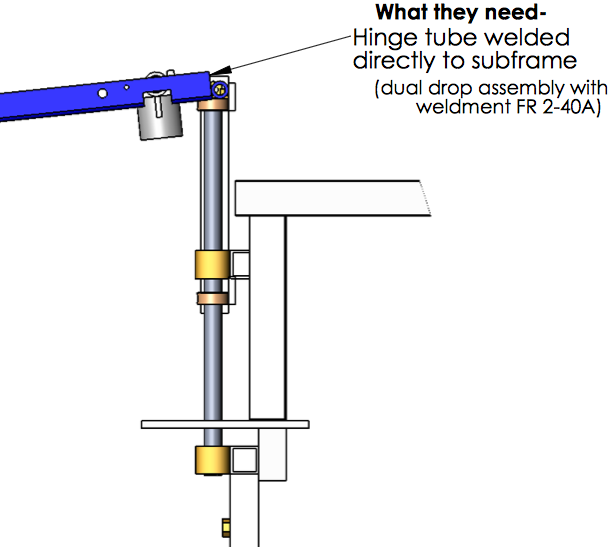

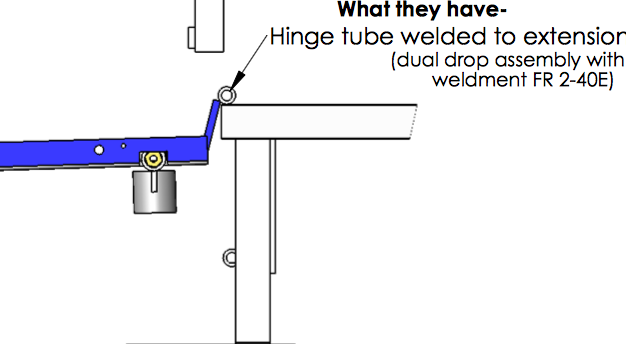

If the customer has a dual drop head piece and is ordering a retrofit raised head feature they will still need a new dual drop assembly because the location of the hinge is different on the dual drop subframe that goes on a raised head.


Screen_Shot_2018-03-28_at_9.38.52_AM.pngScreen_Shot_2018-03-28_at_9.40.16_AM.pngScreen_Shot_2018-03-28_at_9.36.12_AM.png
