Adjusting the seat tilt (down position)

1. It will not be necessary to remove any cushions.

2. Use the pedal to bring the Lift Back as far forward as possible to access the microswitch below the pivot area, as shown in photo 1.

3. Unplug table

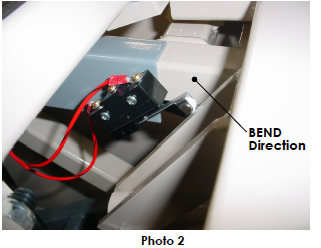

4. To allow the seat to stop at a level position: slightly bend (1/16″) the roller of the micro switch (photo 2) away from the steel plate that will contact it when the seat is at it’s level position.

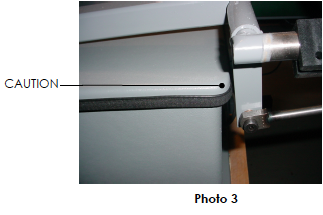

CAUTION: If the micro switch allows too much travel the frame where the foot lock attachs will catch on the plastic cover . Photo 3
