Tilt Micro Switch – Repositioning

PARTS:

8-32 x 5/8″L flat head screw – 1 8-32 nut – 1

part #1097

micro switch – 1 (if original is broken)

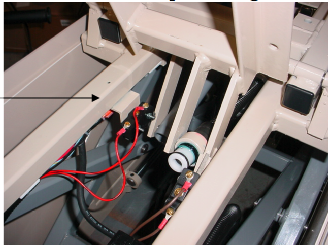

This the location of the micro switch that needs to be adjusted:

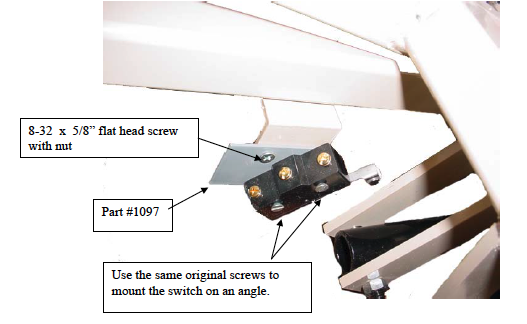

Remove the original micro switch and mount it as shown below.
