Replacement Pendant Mount

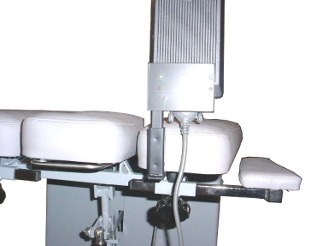

1. Remove the original black plastic receiver from the underside of the cushion and replace it whith the steel one (2 holes). Use the larger screws that are also enclosed. Note the orientation of the new receiver in the 2nd photo below.

2. Remove the screws holding the steel angle to the back of the hand control and replace it with the enclosed bracket (4 holes). The surface with the tube welded against it is the same surface that goes against the back of the hand pendant. The back cover of the hand control will need to be removed to access the screws holding the bracket on.
