Auto distraction patient switch enable

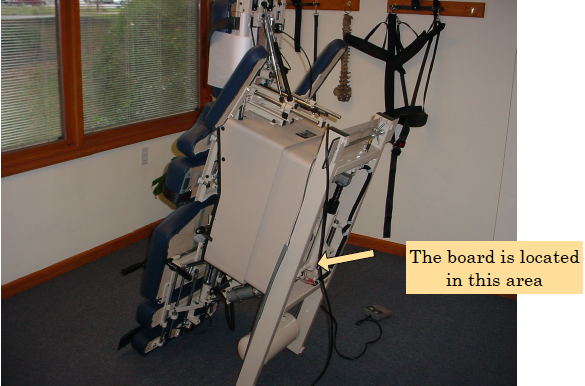

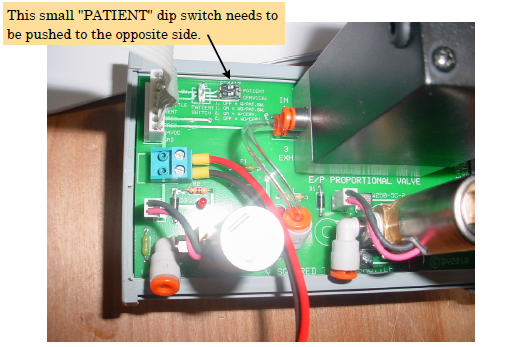

To get the patient switch to respond you will need to flip a switch located on a green board in the base of your table. To access this board you will need to step on the height pedal to elevate the table completely and then stand at the head end of the table and lift until the table rests on the ankle cushion as shown in the top photo.
