How to adjust length of drop on air cylinders
Hold foot on air pedal to keep the cocking lever extended.

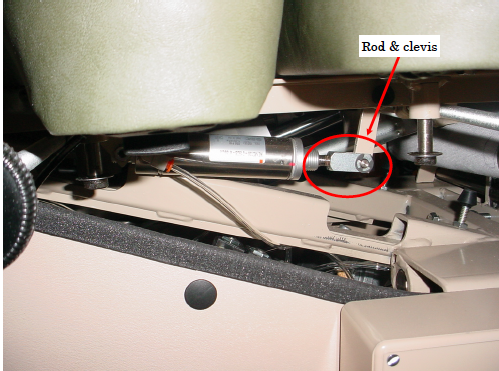

Wrap the extended rod of the air cylinder with a rag and grasp it with a pair of pliers.
Turn the rod counter-clockwise. Note of reference: pliers go up toward cushion when turning rod. This will thread the rod back out of the clevis, extending the stroke of the cocking tube.
