How to attach the pancake cylinder bracket

NOTE: This bracket can only be used if both bars that extend off the crossbar to support the cylinder are still firmly welded to the crossbar.

PARTS:

Bracket FR 11-129

bolts – 5/16-18 x 2″ long hex heads with lock nuts (2 qty)

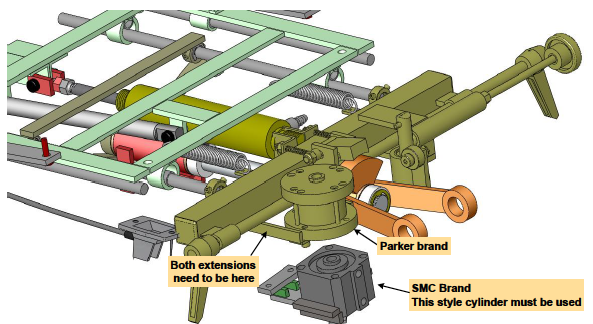

IF they have Parker brand (black & round) then send SMC cylinder (silver & square)

1. The welded extensions need to be on the crossbar to support the new bracket.
2. Hold the new bracket, with cylinder attached, against the bottom of the cross bar and mark the two holes.
3. Drill 5/16″ diameter holes completely through the 1 1/4″ square tube at both marks.
4. Use the enclosed bolts to secure the bracket.
