How to change out large green board (2012-2018)
Retract the ankle cushion. Use the height pedal to adjust the height to half way.

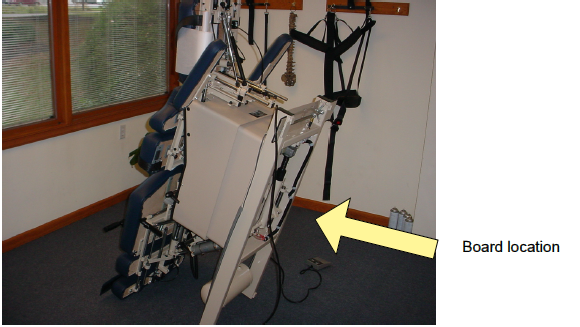

The board can be accessed by standing the table on end. Lift at the head end until the table rests on the foot cushion.

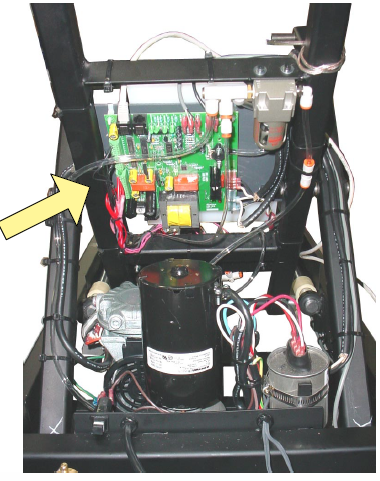

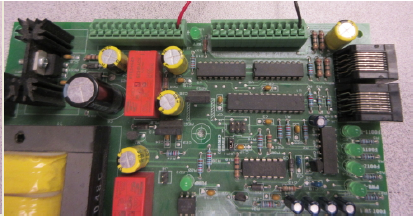

The board is mounted to the scissor assembly.

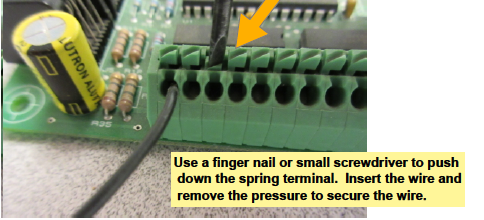

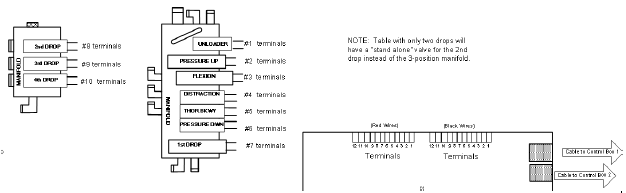

Identify which terminal the function should be connected to. For example, if the flexion is not functioning then the 3rd red wire and the 3rd black wire need to be checked for good connections.
