How to enable options on touchscreen (2010-2018)

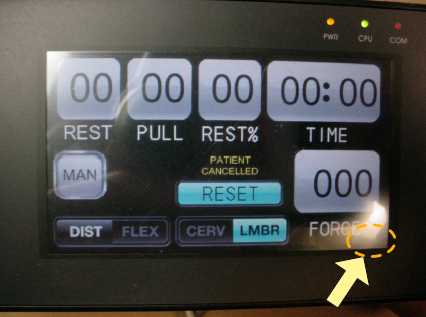

The picture shows the screen as it appears when the power is first turned on. There is an invisible button below and slightly to the right of the “E” in “FORCE”. Press there.

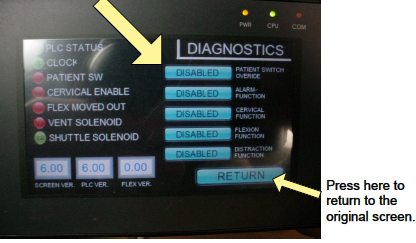

Find the functionality in the list that your particular table has and press the “DISABLED” button alongside that function to Enable it. Press “RETURN” at the lower right to begin using your table.
