How to lock pelvic rotation (2004-present)
To Lock the Rotation Cushion:

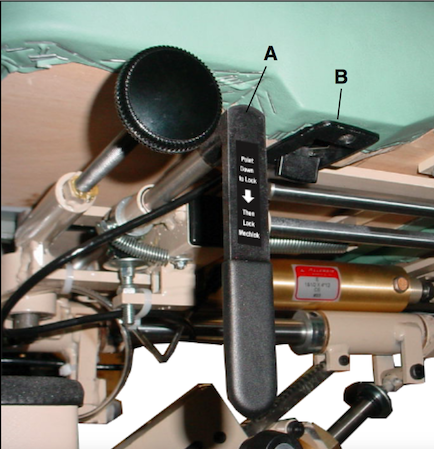

– Turn the handle (marked “A” in the photo) down to the six o’clock postion to level the cushion
– Push the Mechlok switch lever (marked “B” in the photo) in towards the patient to lock the cushion.
