How to remove wobble from flex lock handle (1993-2018)

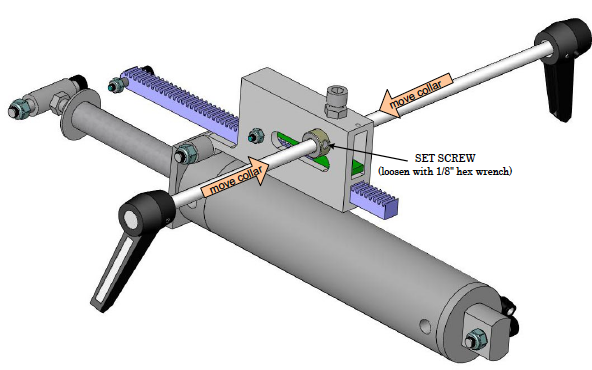

Loosen the set screw in both collars and press them against the sides of the Flex Lock Housing. This will stabilize the shaft with the handles on it.
Note: Split collars can be added if there is none present.
