How to replace a valve on the manifold (2012-2018)

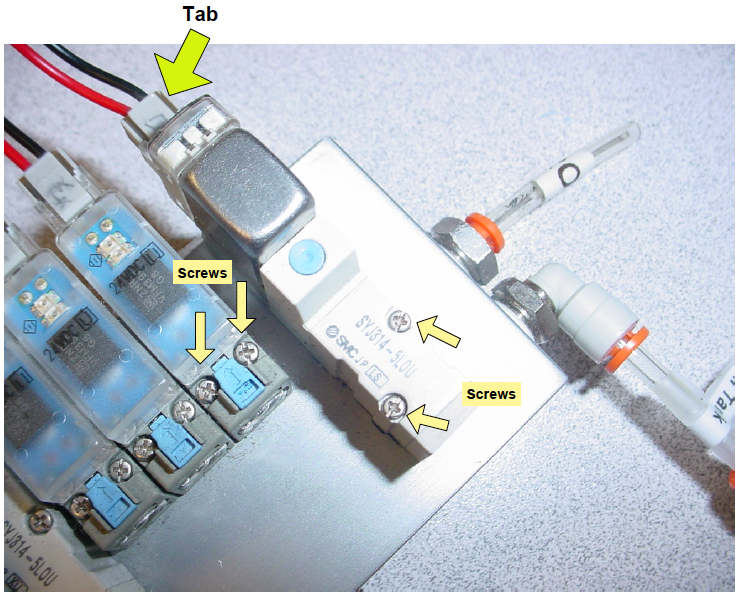

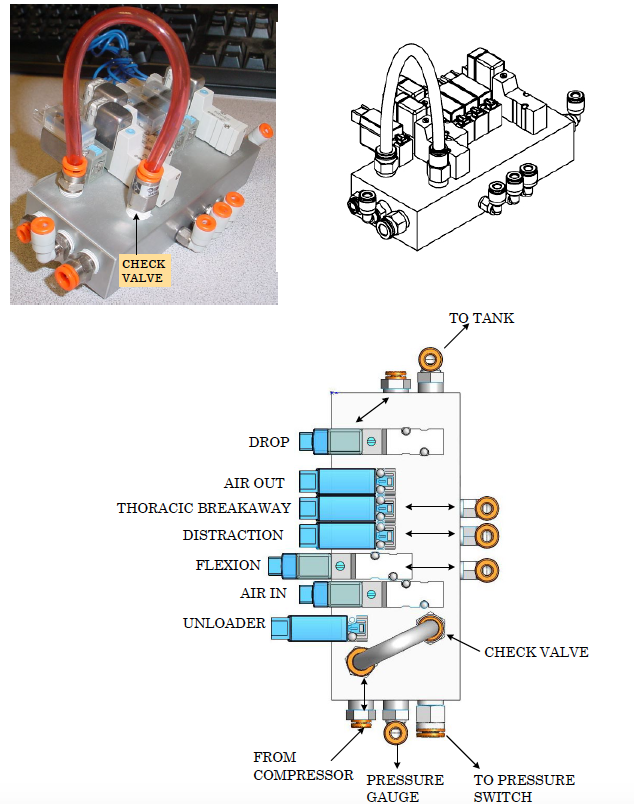

The second image shows the location of each valve on the main manifold. There are two styles of valve but each is secured with two screws which are identified in the photo, below.
The wires can be disconnected by squeezing the top tab on the wire connecter and pulling the connector straight out of the end of the valve.
Once the new valve is secured with the screws, the wire connector can be inserted and will click into place.
