How to tighten the auto flex gear on the motor shaft (12/2006-2018)

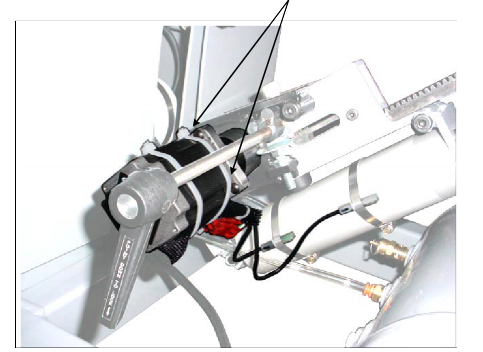

Use an 1/8″ hex wrench to remove the four (4) screws and separate the motor from the gearbox.

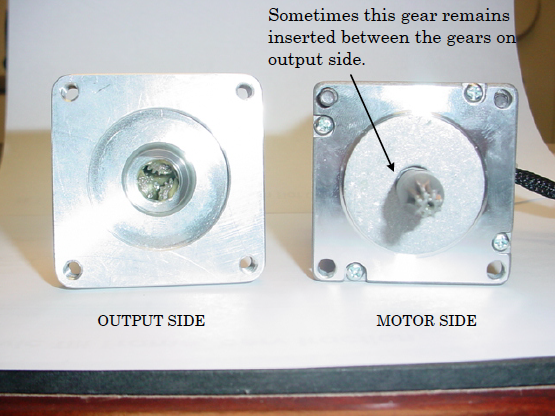

Use a 1/16″ hex wrench to secure the gear to the motor shaft (also see photo below).
