Installing a Lock-Out device for the Pelvic Rotation (2001-2003)

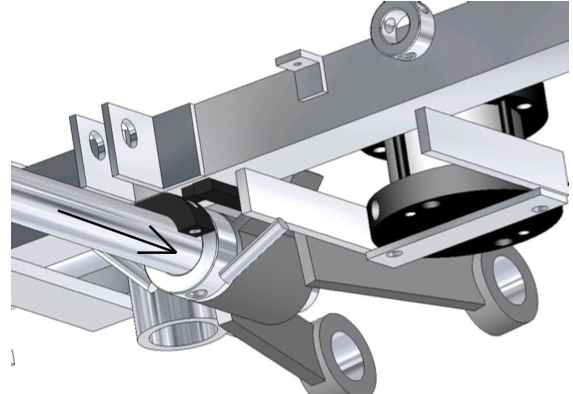

STEP 1 – Separate the two halves of the lock-out device (arrow) and position the two fingers just under the crossbar with half the collar resting on top of the 7/8″ diam. chrome shaft.

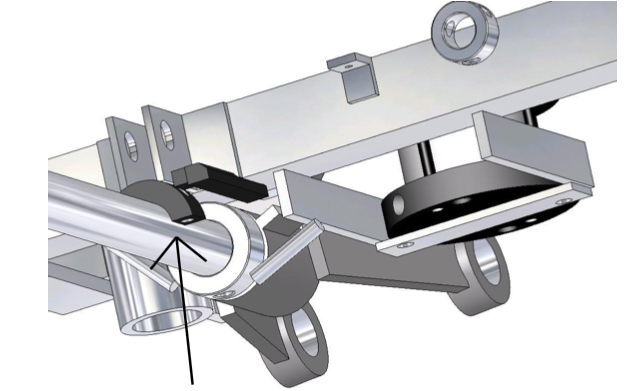

STEP 2- Tap the lock-out device toward the head end until it is wedged tight under the crossbar.

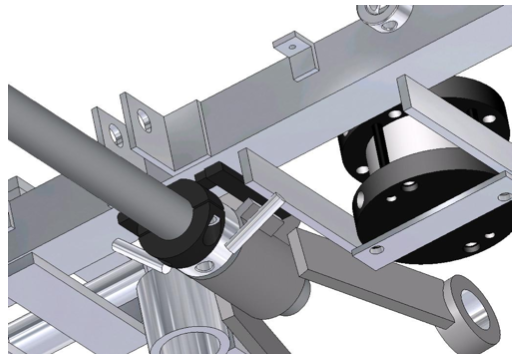

STEP 3- Secure the bottom half of the lock-out device to the top half with the two screws.
