Repositioning rotation pin with no pelvic drop (2004-present)

NO PELVIC DROP-

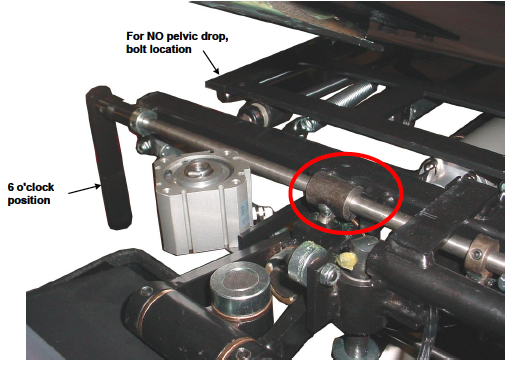

1. Use a 7/16″ wrench to remove 4 bolts where the pelvic cushion attaches to the four corners of the distraction frame.
2. Rotate the black steel handle down to the “6 o’clock position”, toward the floor.
3. Use a 5/32″ hex wrench to loosen the 4 set screws on the centering pin and reposition it so that it is engaged in the U-shaped slot as shown. Tighten the set screws.
