Restraint Belt
Restraint Belt
KIT00-010
Parts:
Complete seatbelt
Footman Loops (H1501) x 2
3/4″ Long drywall screws (H90) x 4
Insert a bracket into the loop at each end of the seatbelt assembly and locate the belt at the desired location on the cushion.
Secure the brackets to the underside of the cushion using the screws that are included.

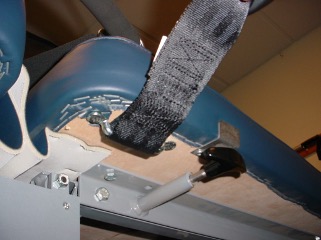

The picture above is an example of just one application.
