Trendelen Tables – How to Access the Enclosure

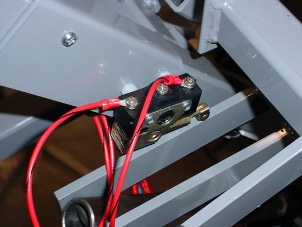

The picture above shows the switch located near the middle of the top frame. Check the two wires for a loose connection. Remove the two wires and do a continuity test across the two terminals. This is the “normally closed” term inaction so your meter should show continuity without actuating the microswitch.
