Replace Thoracic Mechlok

AFT
Replace Thoracic Mechlok

To access the Mechlok you will need to remove the plastic enclosure from around the top frame. Use the pedal to elevate the table. Unplug the table. There are two screws at the head end, near the arm rests, two screws at the foot end of the plastic, and one on each side. Pull the plastic down and away to free it from the arm rests if you want maximum visibility.

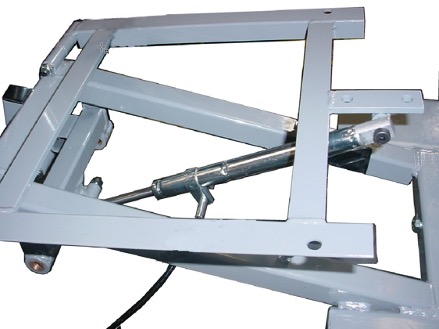

Take note of how the Mechlok is oriented in the frame so that the new one can be oriented the same.

Use a 3/16″ hex w rench and a 1/2″ open end/closed end wrench to remove the bolt at each end.
