Convert standard height to low height

(AutoReturn)

1. Use pedal to raise top to highest position.
2. Unplug the table.
3. Remove the screws (under the black trim) securing the flat plastic covers on top of the skirting.
4. Remove screws securing the inside skirt to the base.
5. Remove screws securing the outer skirt to the top frame and let it rest on the base.
6. Disconnect wires leading to motors mounted to the top frame.
7. Remove the top frame from the scissors.
8. Lift the both skirt sections from the base and cut the height shorter on a table saw. The inner skirt should be 11 1/2″ tall and the outer skirt should be 11 3/4″ tall.
9. Replace the standard height scissors (34″ long) with the short version (33″ long)

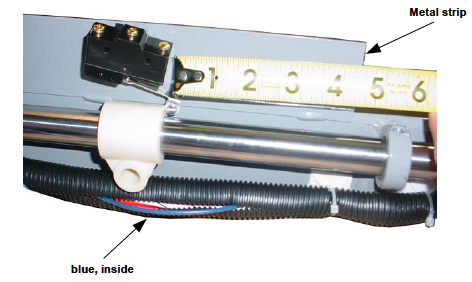

10. Mount a micro switch to limit the UP range of the actuator. The roller is 4 1/2″ from the of the metal strip of the base, as shown in the photo.
11. Find the blue wire in the wire harness and route it to the micro switch. Cut the blue wire and crimp on the ring connectors, provided.
12. Return the skirt sections to the base.
13. Mount the top frame to the scissors. Be sure all set screws have blue thread locker added and are tightened.
14. Reattach the skirting and the flat covers on top of the skirting.
