Foot section mechlok function

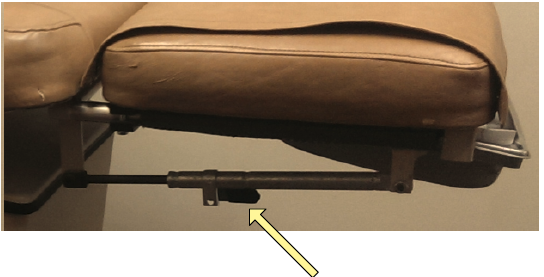

The foot should tilt down if you pull the black rubber lever towards you.
