How to swap wires on circuit board

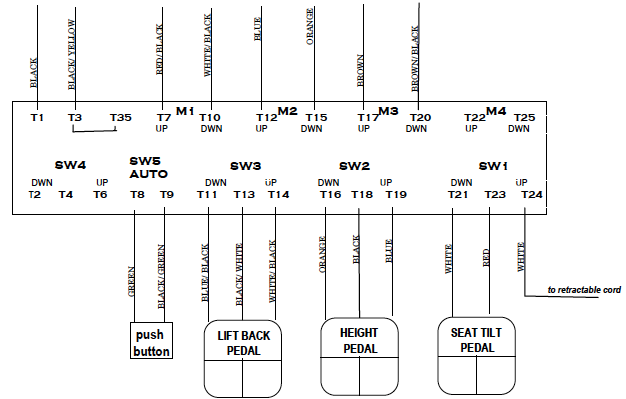

NOTE: Use this drawing only if your board has a row of lights (LED’s) on it .

The board is designed for four motors but Podiatry tables only uses three motors.

You can move the wires of the function that doesn’t work over to the open position (M4 and SW4).

WIRE – 24B
