Replacing the pull out tray assembly

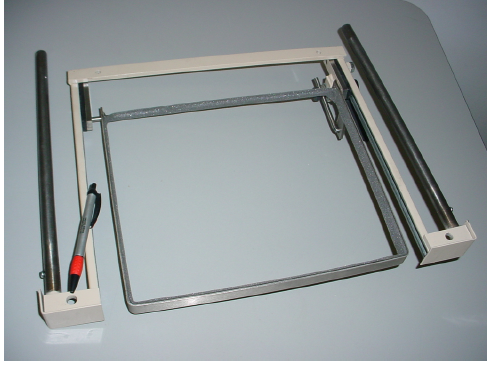

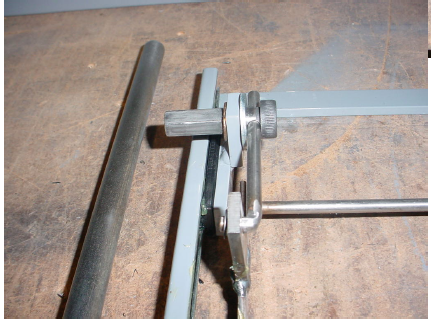

- Remove two bolts that hold the tray assembly to the underside of the foot cushion. The pen in the photo is pointing to the location on the assembly where the bolts will be located. Tool size needed: 7/16″
- Slide the original assembly out of the receiver tubes and slide in the new one.
- Line up the holes in the new frame with the holes in the cushion and secure with the original bolts.
