Bolt #781

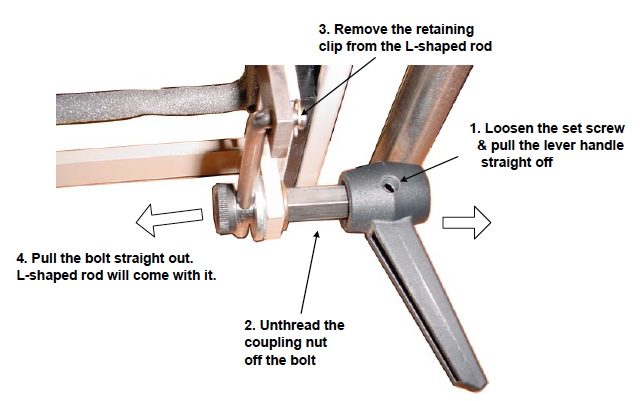

1. Loosen the set screw & pull the lever handle straight off.

2. Unthread the coupling nut off the bolt.

3. Remove the retaining clip from the L-shaped rod.

4. Pull the bolt straight out. L-shaped rod will come with it.

5. Insert the L-shaped rod into the hole of the new bolt and reverse the steps to install.
