Add 1″ of Height to a Stationary Base

Adding 1″ of height to a stationary base

PARTS LIST:

2 qty. #811 (with holes)

4 qty • 1/4-20 x 2″ hex hd boys

Remove the screwss holding the outer plastic skirt to the top frame and let the skirt rest on the base.

Remove the 4 bolts holding the top frame to the base with 7/1 6″ wrench.

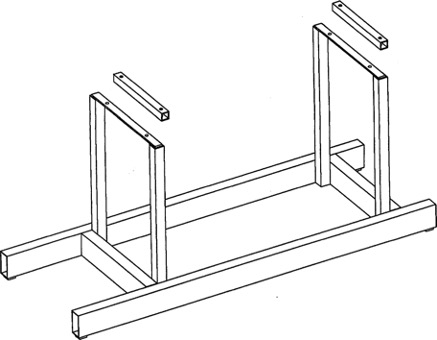

Locate the tubes over the existing mount plates of the base as shown in the diagram below.

Rest the top frame on the tubes and use the new 2″ long bolts to secure the top frame.

Attach the skirt.
