Add Length and Width Extensions

BASE

Add Length & Width Extensions

PARTS LIST:

Weldment BASE 1-45 (pair) – 1 or 2 qty
screw s, 5/16-18 x 1″ long buttonhead screws – 4 qty (per pair)
nuts, 5/16-18 nylon lock nut – 4 qty (per pair)

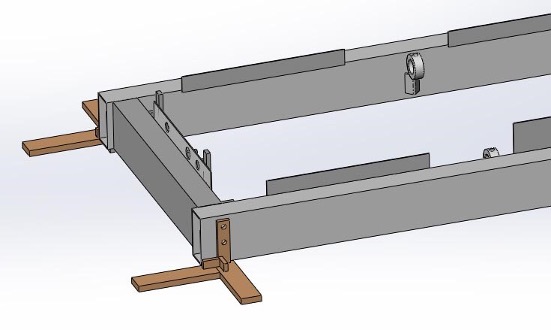

1. Gently pry the black plastic end caps from the base tube. This will enable you to tighten the nuts with a wrench.
2. With the base resting on the floor, lay an extension bracket on the floor at the end of the base and mark the location of the two holes.
3. Drill a 5/16″ hole at each location and mount the bracket with the enclosed screws.
4. Replace the end caps.
