Add Length Extensions to Level Feet

Add Length Extensions to Level Feet

PARTS LIST:

W eldm ent BASE 1-41B (includes left and right bracket) screw s, 5/16-18 x 1″ long buttonhead screw s (H1835) – 4 qty nuts, 5/16-18 nylon lock (H236) – 4 qty

1. Gently pry the black plastic end caps from the base tube. This will enable you to tighten the nuts with a wrench.

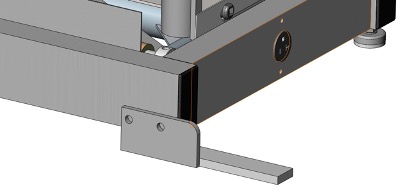

2. With the base resting on the floor, lay an extension bracket on the floor at the end of the base and mark the location of the two holes.
3. Drill a 5/16″ hole at each location and mount the bracket with the enclosed screws.
4. Replace the end caps.
