Add Spacer at Pivot Points
Add Spacer At Pivot Points

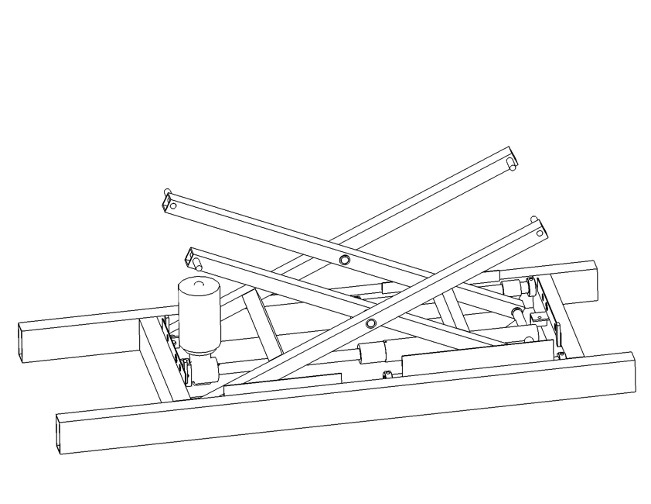

The lower pivot points can be accessed by using the pedal to elevate the table. Remove the six screws that secure the plastic enclosure to the steel base.
The upper pivot points can be accessed by removing the dry wall screws that secure the wood strips to the underside.
Push a fiber “C” spacer into any gap that is wide enough to receive it.
