How to Add Tape Switches

TAPE SWITCHES
How to Add

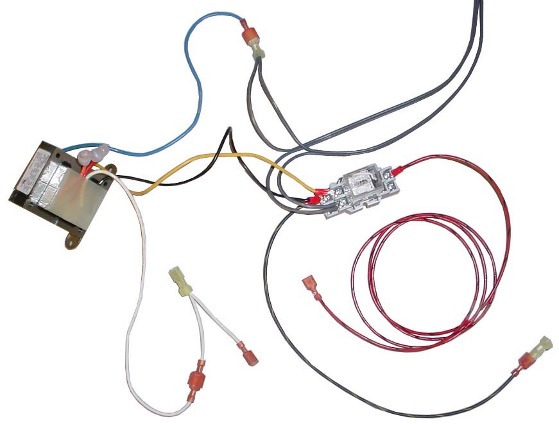

PARTS:

Transformer (115 or 230V)
Relay, S ingle Pole (H430 socket, H5343 ice cube)
Screw s, self-tapping #6 x 7/16″ (H482)
Wire, red/black 55 inches
Wire, black/yellow 12 inches
Wire, white splitter 3 inches
Screws, sheet metal #8 x 1 1/4″ long (H1455)

*Wires from two tape switches

1. Use the foot pedal to elevate the table.

2. Remove the screws securing the inner plastic skirt to the base.

3. Drill a 5/8″ hole in the metal strip at the head end about four inches from where the power ford enters.

4. Stand at the head of the table and lift it until the table stands resting on the foot cushion.

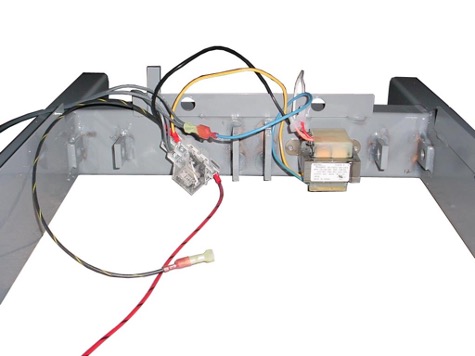

5. Mount the transformer on the inside of the base and to the right side of the height actuator. It is secured with the self-tapping screws, enclosed.

6. Remove the gray wires of the tape switch from the #7 terminal of the relay and insert them through the hole that was drilled in Step 3.

7. The wire from the tape switch with the yellow connector joins with the blue wire from the transformer.

8. Connect the gray wires that were inserted through the base in Step 6 and connect to terminal 7 of the relay again.

9. Locate the main wire harness already in the base. Find the black with yellow wire in the harness, near the capacitor. Cut it, strip the two ends, and crimp them together in the yellow connector that is provided. Connect this connector to the black/yellow from the relay.

10. Locate the white wire from the power cord. Cut it strip the two ends and crimp them together in the other yellow connector provided. Plug this connector into the transformer.

11. The new red/black wire will follow the original wire harness up the scissor to the control box.

12. Find the red wire to the selector switch and separate the connectors. Plug the new red/black into the red still connected to the selector switch. Use electrical tape to “tape off” the original red wire that entered the box.
