Replace Capacitor
Replace Capacitor
PARTS
65uf capacitor
10-24 x 2 inch pan head screw
10-24 nylock nut
2 washers
TO GAIN ACCESS
- Use the foot pedal to elevate the table.
- Unplug the table from the receptacle
- Remove the 6 screws securing the plastic enclosure to the base and hold up the enclosure. Clamps, string or tape may be used.

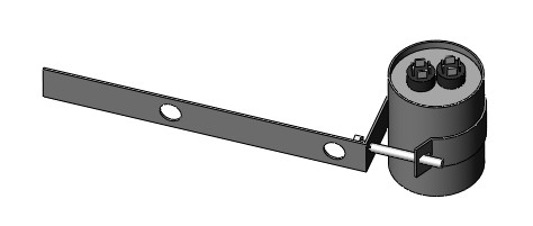

The new capacitor is larger than the original. Use pliers to open up the bend of the strap a little as well as straighten the tab so that a bolt be inserted through both holes as shown. A longer bolt (2 inch) was included so that it can span the larger gap.
