Replace Circuit Board CM132 with CM129 for tables built between May 2011 to present

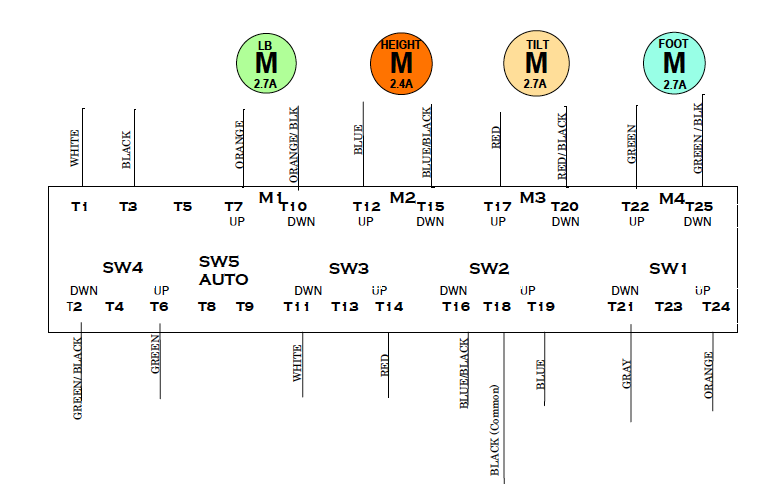

IMPORTANT: the terminals on the CM129 board are in a different order than on the CM132 so follow the color indications given in the drawing provided.
Please see this article for information on accessing and replacing the circuit board.
